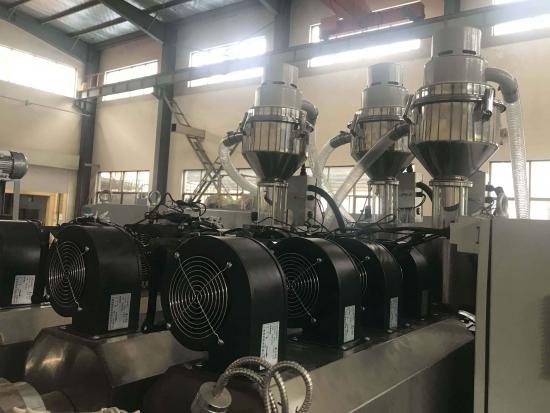

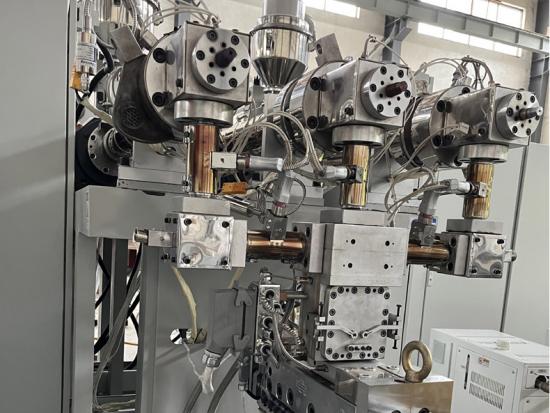

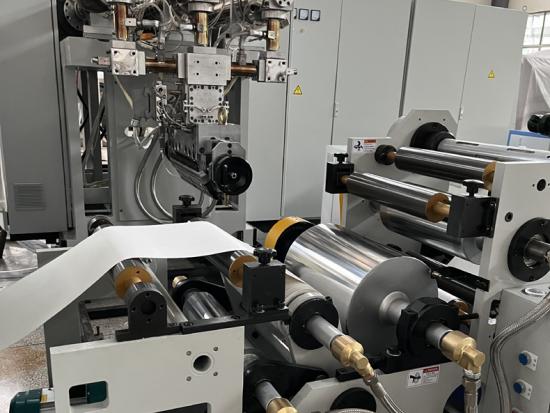

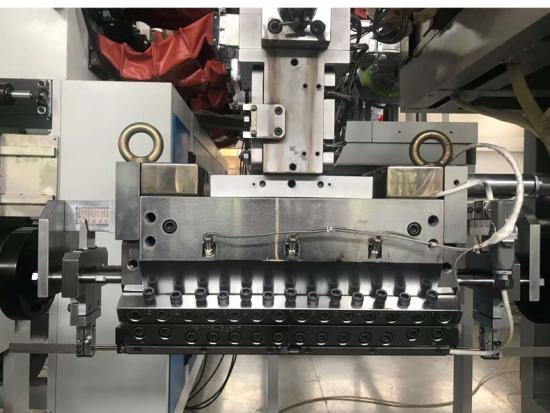

Multi-layer Co-extrusion Coating & Lamination Pilot Line

The pilot line can be equipped with 3 or 5 layer co-extrusion coating and lamination for the innovation of packaging materials. It is ideal to be used as extrusion coating test run or a small scale production.
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Product Origin:

    China

Multi-layer Co-extrusion Coating & Lamination Pilot Line


Introduction:

The extrusion coating and lamination pilot machine is designed based on our profound know-how and experiences of commercial lines. A wide selection of machine functions such as multiple layer co-extrusion, surface treatment can be included. The extruders have the flexibility for running PE, EVA, PLA, PHB, PBS polymer which works as bonding layer for various substrates.

The extrusion coating and lamination pilot line minimize the commercial line and make lab test easy and efficient. We not only can test the new polymer of coating layer, but also the bonding performance between resin and substrate layer.

Application:

polymer coating performance tests

new products recipes research and development

optimize production process

small scale production for narrow width

evaluation on coating adhesion, polymer neck-in, barrier properties

Typical Specification:

Screw Dia.: 35mm, 45mm, or upon request

Resins: PE, PLA, PHB, PBS

Product Width: 200-400mm

Unwinder: single 3” airshaft

Rewinder: single 3” airshaft

Corona Treater: available upon request

Tension Control: fully automatic constant tension

Machine Control: PLC & HMI
